2D Barcode Scanner
TBS-6633

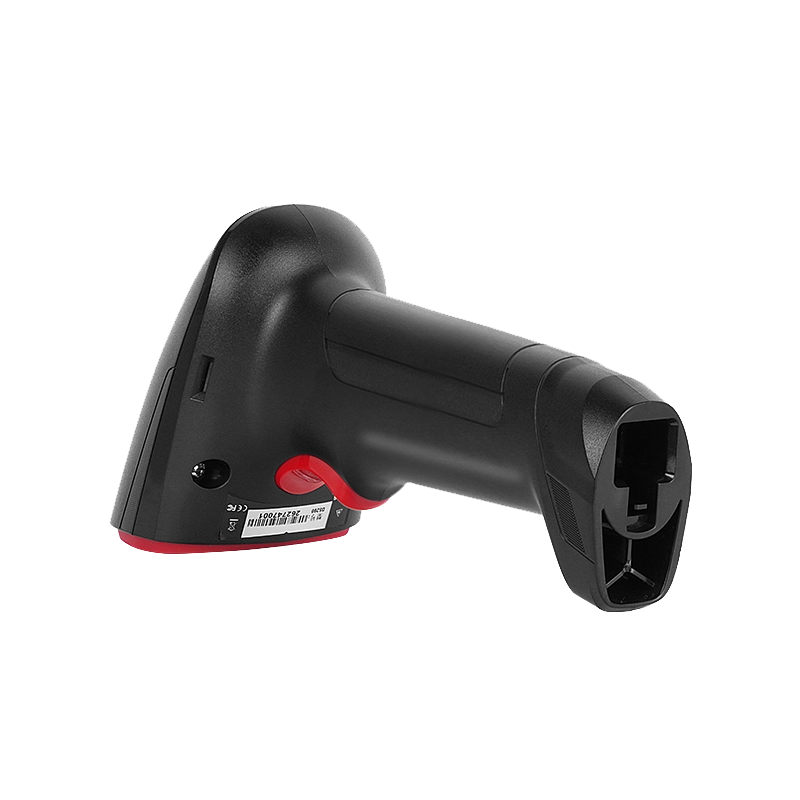

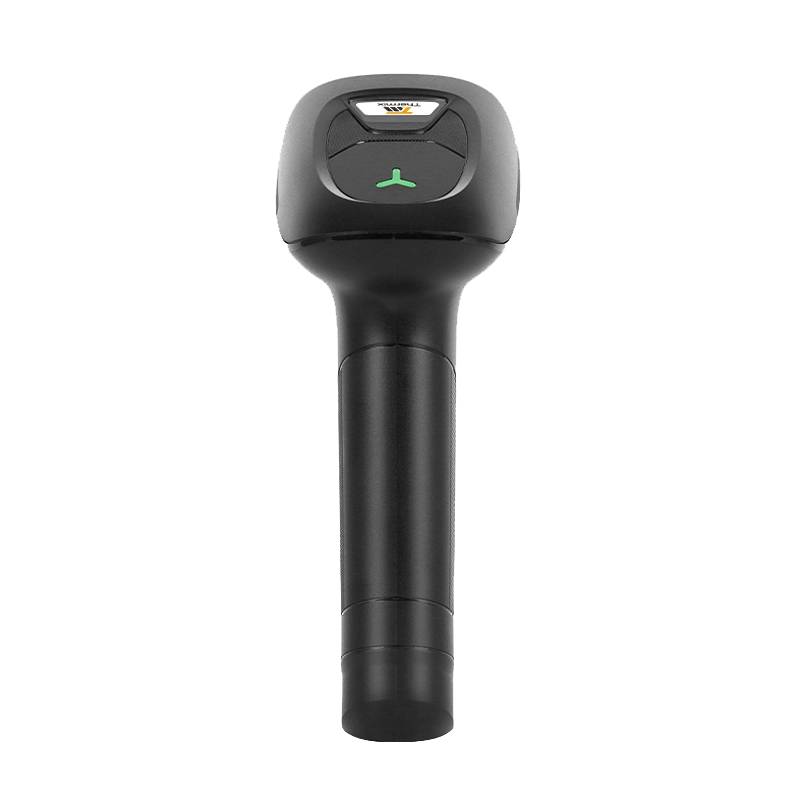

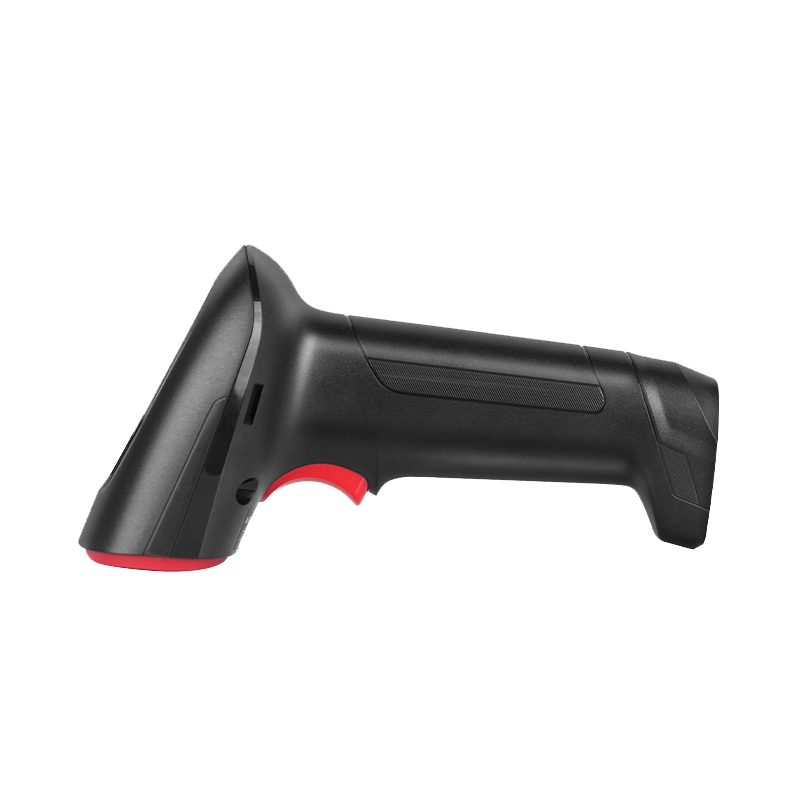

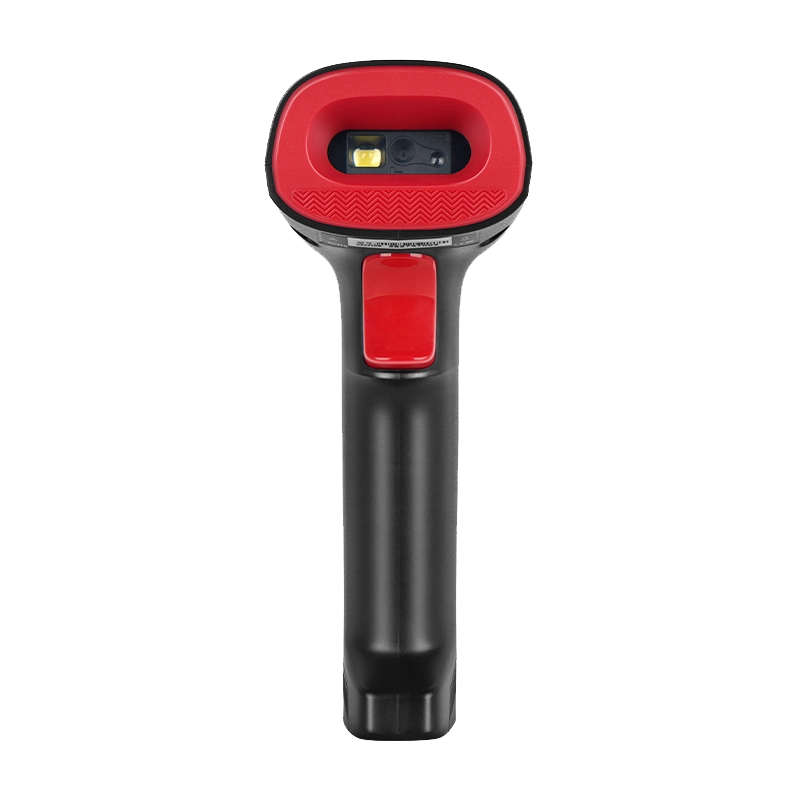

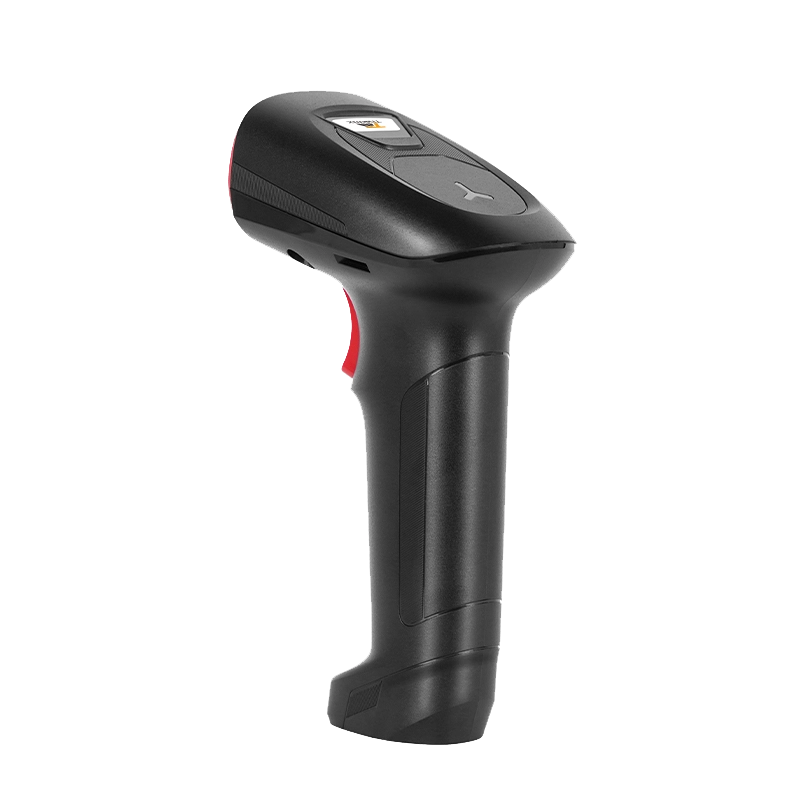

Thermix TBS-6633
Durable 2D handheld scanner with high-performance chip for tough barcodes
Key Features
- Quickly scan 1D and 2D barcodes
- High-performance chip for abnormal barcodes
- Five million key-press life — comfortable and durable
- Plug-and-play for easy setup
The Thermix TBS-6633 quickly scans 1D and 2D barcodes with a high-performance chip that interprets damaged or abnormal codes. A five-million key-press life and comfortable grip keep it ready for long retail and restaurant shifts.
Plug-and-play USB-HID, USB-COM, and RS232 connectivity with a 1.5 m cable means fast setup on almost any POS system.
Specifications
Technical data from the official Thermix TBS-6633 datasheet.
| Light Source | White fill LED / red LED aiming |
|---|---|
| Scanning Principle | Image CMOS 640 × 480 |
| Trigger Mode | Manual / Continuous / Auto-inductive |
| Scan Angle | Rotate 360°, tilt ±60°, deflection ±60° |
| Accuracy | 1D ≥ 5 mil / 2D ≥ 10 mil |
| Depth of Field | EAN13 60–250 mm (13 mil) |
| Contrast | ≥ 20% |
| Bit Error Rate | 1/5 million |
| Decode 1D | EAN, UPC, Code 128/39/93, CodaBar, Interleaved 2 of 5, GS1 Databar, and more |
| Decode 2D | QR, PDF417, DataMatrix, Aztec, Maxicode, Micro QR, Micro PDF417 |
| Interface | USB-HID, USB-COM, RS232 |
| Dimensions | 84 × 63 × 166 mm |
| Material | ABS + PC |
| Cable | 1.5 m |
| Voltage | DC 5V ± 5% |
| Operating Current | ≥ 135 mA |
| Drop Resistance | 1.5 m free fall |
| Operating Temp | -20°C – 50°C |
