1D Laser Barcode Scanner
TBS-6606

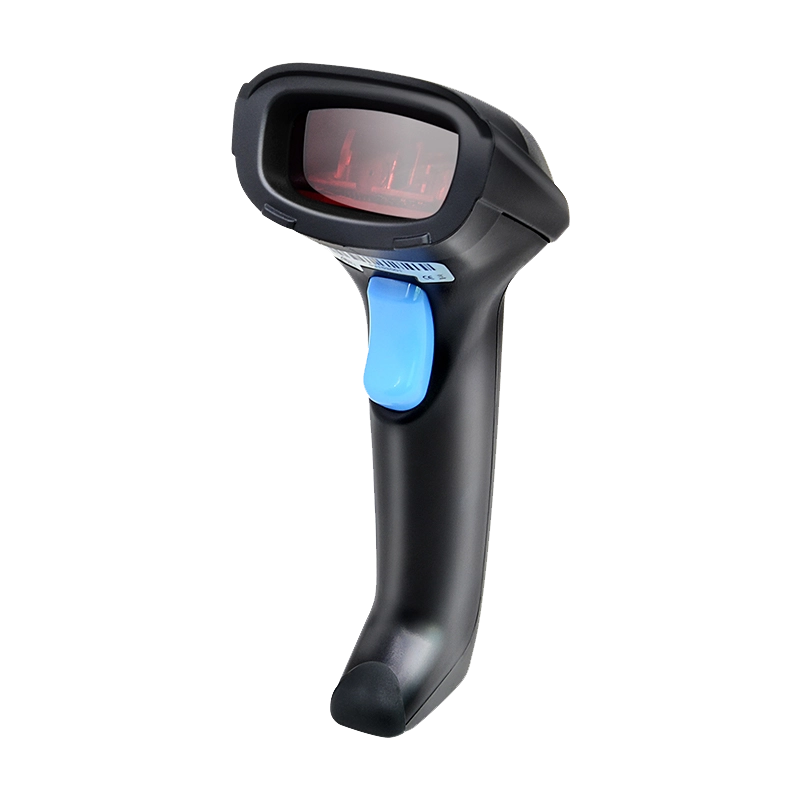

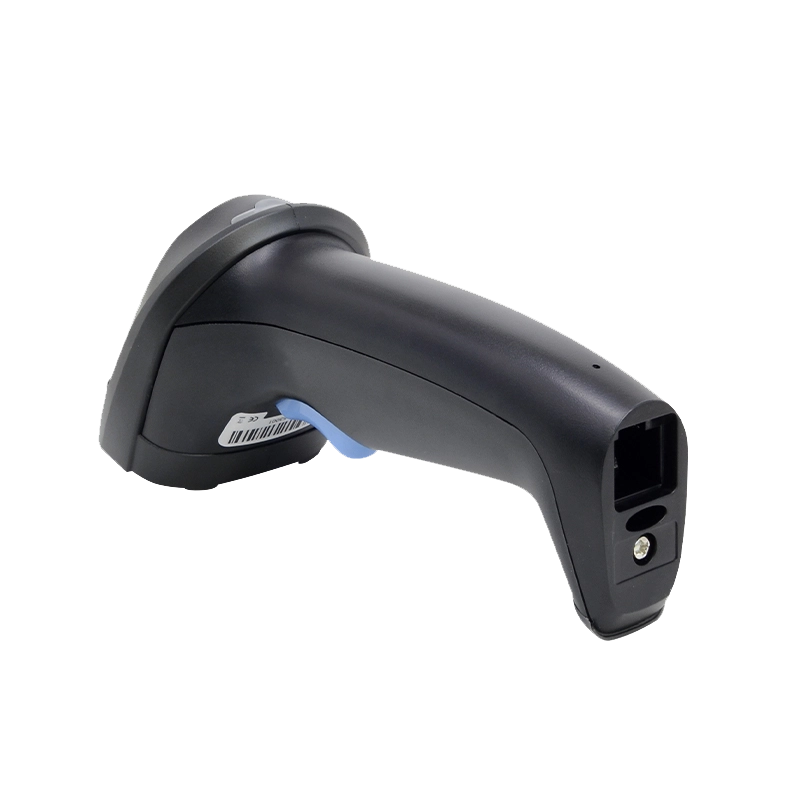

Thermix TBS-6606
Ergonomic 1D laser handheld scanner with cradle for retail & restaurant checkout
Key Features
- Auto data detection
- High-performing laser scan engine
- Ergonomic design for maximum user comfort
- Supports all common 1D barcodes and popular interfaces
The Thermix TBS-6606 is a high-performing 1D laser barcode scanner with auto data detection and an ergonomic grip for all-day comfort. It supports all common 1D barcodes and popular POS interfaces including USB-HID, USB-COM, PS2, and RS232.
Rated for 1.5 m drops onto concrete and supplied with a 1.5 m cable and matching cradle, it is built for continuous retail and restaurant counter use.
Specifications
Technical data from the official Thermix TBS-6606 datasheet.
| Light Source | 650 nm laser (safe visible laser diode) |
|---|---|
| Scan Type | Single laser |
| Scan Speed | ≥ 150 times/s |
| Scan Mode | Manual / Continuous / Automatic inductive (optional) |
| Resolution | ≥ 3 mil |
| Depth of Field | 10–280 mm (0.33 mm, PCS 90%) |
| Scan Angle | Skew 55°, Rotation 30°, Pitch 65° |
| Bit Error Rate | < 1/5 million |
| Interface | USB-HID, USB-COM, PS2, RS232 |
| Decode Capability | UPC, EAN, CODE39/93/128, Codabar, Interleaved 2 of 5, GS1, ISBN, and more |
| Dimensions | 83 × 70 × 172 mm |
| Weight | 126.6 g |
| Material | ABS + PC |
| Cable | 1.5 m straight |
| Voltage | DC 5V ± 1% |
| Working Current | 85 mA |
| Drop Resistance | Multiple 1.5 m drops to concrete |
| Operating Temp | -20°C – 50°C |
