POS Systems
All Metal Large Cash Drawer With Metal Tray
TCD-8703
Thermix TCD-8703
Heavy-duty all-metal cash drawer with metal wire grippers and 1M cycle life
All MetalMetal Tray1M CyclesRJ113-Pos LockMedia SlotRetailHeavy Duty
Enquire About Thermix TCD-8703Key Features
- All-metal casing with metal tray and metal wire bill grippers
- Fixed bill dividers and removable coin case
- Three-position key lock with multiple key combinations
- RJ11 standard interface (USB optional)
- Rated for 1,000,000 cycles

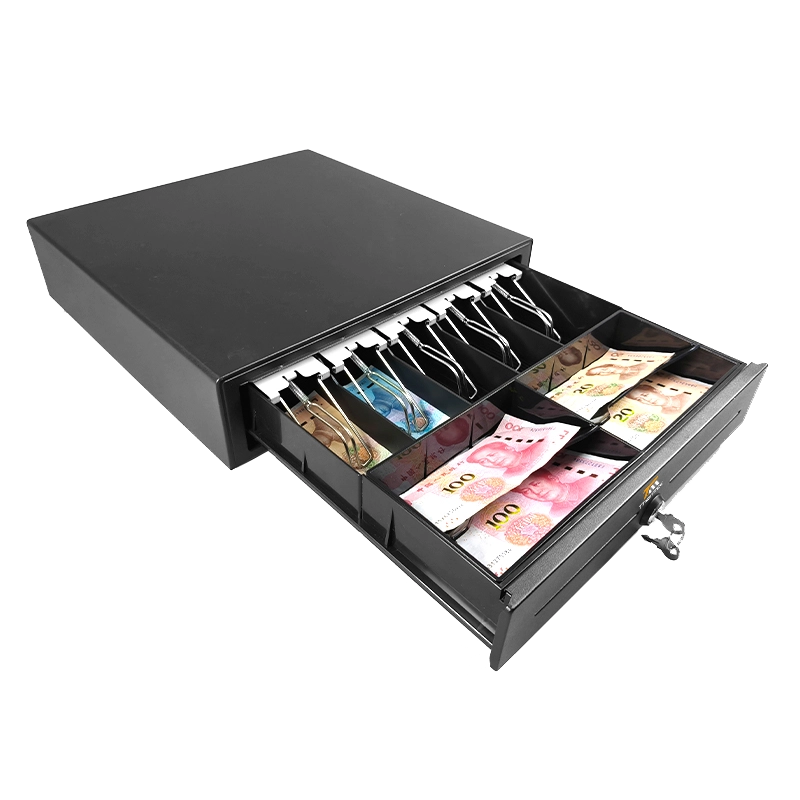

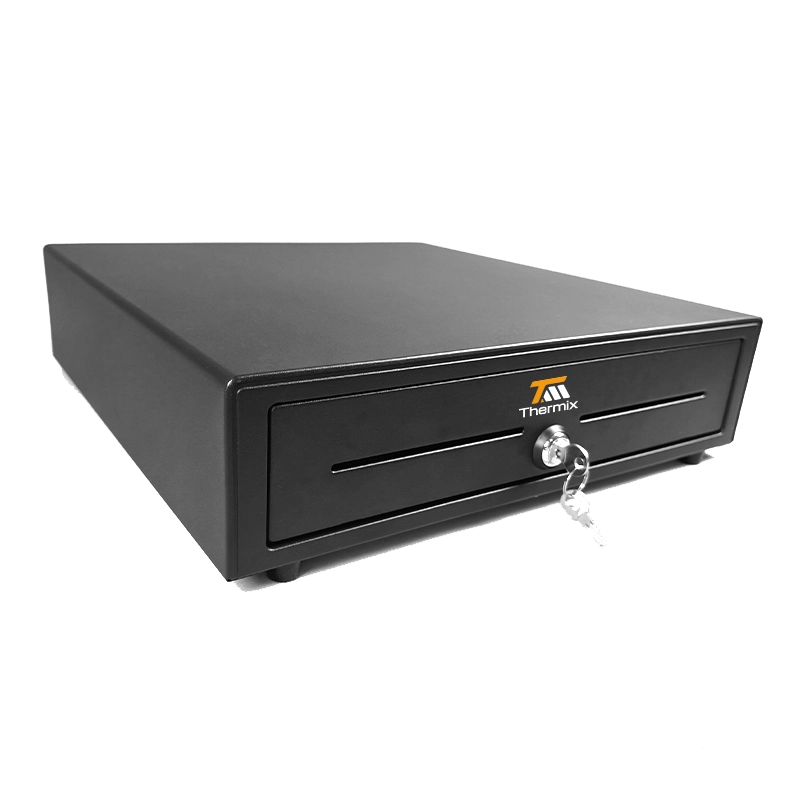

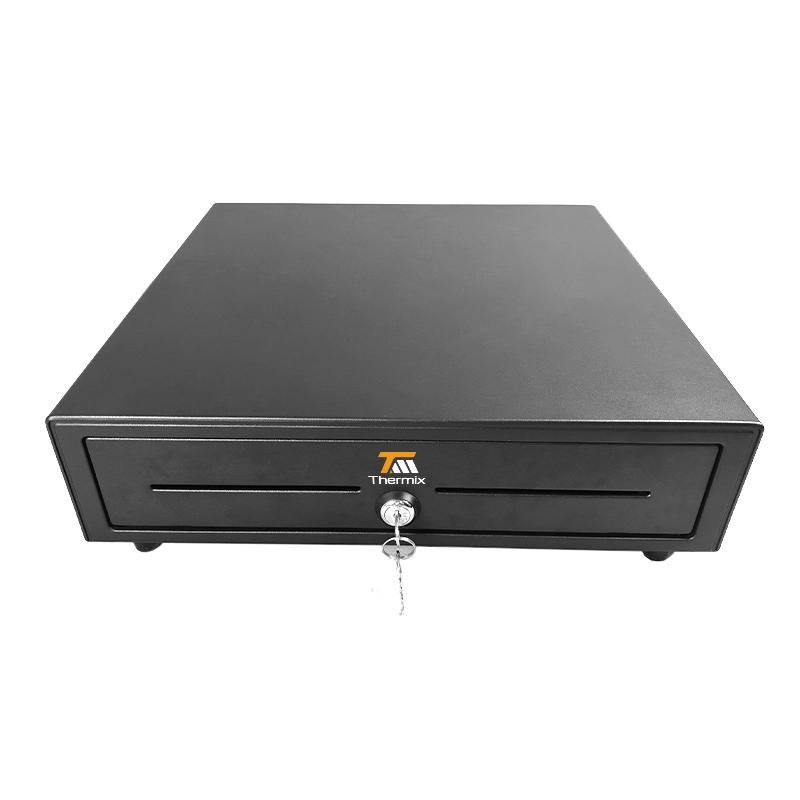

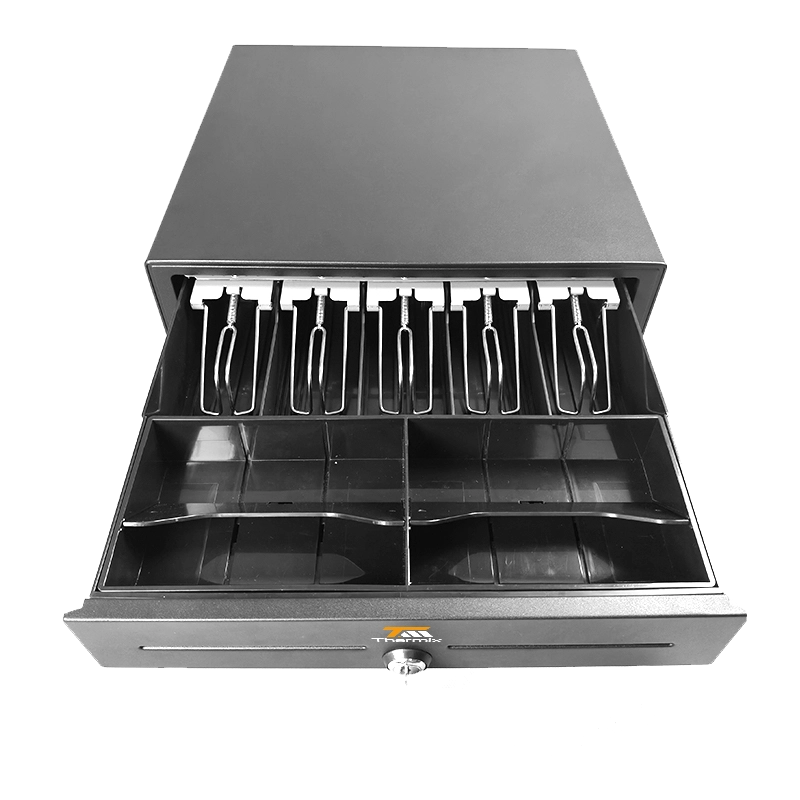

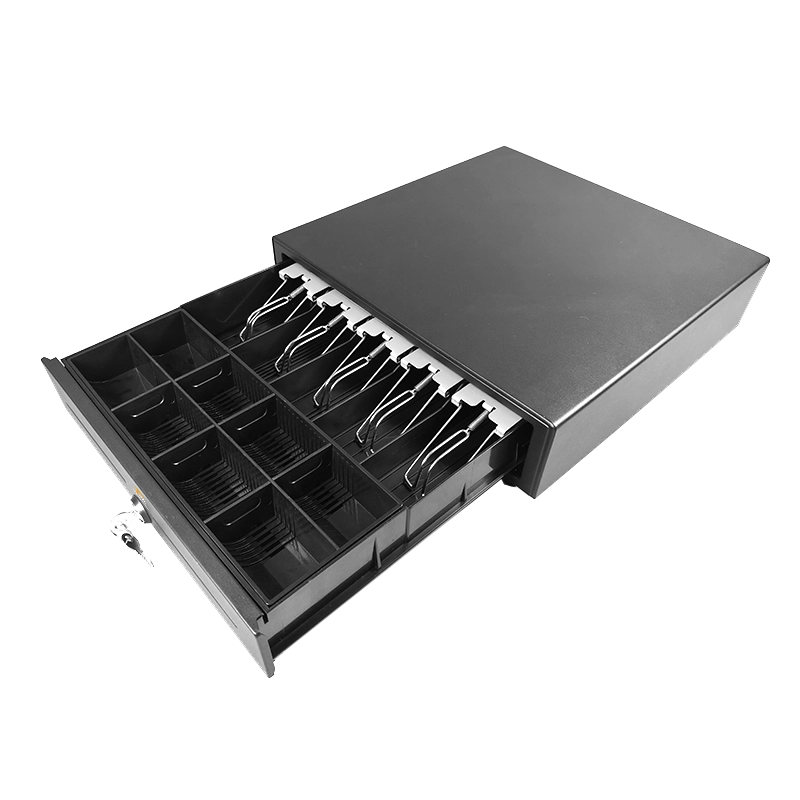

The Thermix TCD-8703 is an all-metal large cash drawer with a metal tray and metal wire bill grippers, built for high-volume retail counters. Fixed bill dividers, a removable coin case, and a single media slot keep end-of-day cash handling fast and secure.
A three-position key lock, RJ11 interface (USB optional), and a 1.5 m bottom cable integrate cleanly with Thermix receipt printers. Rated for 1,000,000 open/close cycles.
Specifications
Technical data from the official Thermix TCD-8703 datasheet.
| Size | 410W × 415L × 100H mm |
|---|---|
| Packing | 475W × 455L × 165H mm |
| Weight | Net 5.5 kg / Gross 6.5 kg |
| Colour | Black / White / Custom |
| Tray Options | 5 Bill + 8 Coin / 5 Bill + 5 Coin / 10 Bill / 7 Bill + 3 Coin |
| Inner Drawer | Plastic drawer |
| Bill Holders | Metal wire gripper |
| Dividers | Vertical plastic divider |
| Rollers | Heavy-duty plastic rollers |
| Key Lock | Three-position, 10–100 key combinations |
| Media Slot | Single |
| I/O Interface | RJ11 standard, USB optional |
| Cable | External bottom cable, 1.5 m |
| Cycle Life | 1,000,000 cycles |
| Optional | Micro switch / solenoid open by driver signal |
